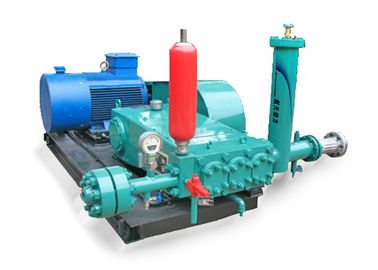

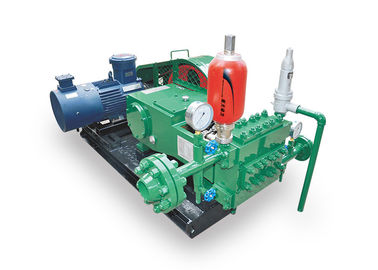

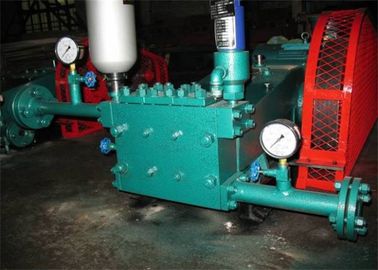

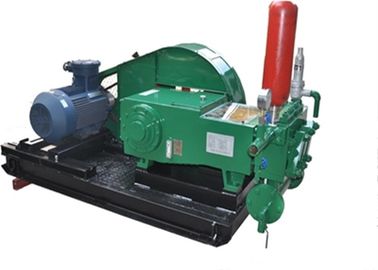

High Pressure Cruid Oil Transfer Pump , Horizontal Single Acting Reciprocating Pump

China Baoji Aerospace Power Pump Co., Ltd. certification
China Baoji Aerospace Power Pump Co., Ltd. certification
I'm Online Chat Now

High Pressure Cruid Oil Transfer Pump , Horizontal Single Acting Reciprocating Pump

High Pressure Cruid Oil Transfer Pump , Horizontal Single Acting Reciprocating Pump
High Pressure Cruid Oil Transfer Pump , Horizontal Single Acting Reciprocating Pump High Pressure Cruid Oil Transfer Pump , Horizontal Single Acting Reciprocating Pump High Pressure Cruid Oil Transfer Pump , Horizontal Single Acting Reciprocating Pump High Pressure Cruid Oil Transfer Pump , Horizontal Single Acting Reciprocating Pump

Large Image :  High Pressure Cruid Oil Transfer Pump , Horizontal Single Acting Reciprocating Pump

Product Details:
Place of Origin: China
Brand Name: BJB
Certification: ISO9001
Model Number: 3SY18.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Sea-worthy package or air-worthy package
Delivery Time: 30 work days
Payment Terms: T/T, L/C
Supply Ability: 100-500 units per year
Detailed Product Description
Material: Cast Iron, Steel/stainsteel/314/316L Type: Reciprocating Pump
Structure: Horizontal Single-action Triplex Or Quintuplex Plunger Pump Usage: Crude Oil Conveying
Application: Oil Stations At The Oil Fields Flow Rate: 1.5-6m3/h
Pressure: 0-25Mpa Power: Electric Motor,diesel Engine
High Light:

diesel fuel transfer pump

,

electric fuel transfer pump

,

ISO9001 Cruid Oil Transfer Pump

High Pressure Cruid Oil Transfer Pump

Description

This horizontal triplex single active recirculation pump comes from our over sixty-year R&D experience and the civil fluid technology. It consists of power end, plunger combination and hydraulic end.It adopts module design and hydraulic end to transport crude oil.

Application

Delivering crude oil or other related products between different oil stations.

Specification

Model 3SY18.5
Plunger DN 25-60 mm
Stroke 75mm
Discharge flow rate 1.5-8.8m3/h
Discharge pressure 0-25MPa
Pump speed 180~230min-1
Pump power 11-18.5kW

Supply range

Item Product name Quantity Remark
1 Pump 1 piece
2 Motor 1 piece Selected based on the user’s need
4 Attachment 1 unit
5 Consumables 1 unit
6 Spare parts, accessories and special tools 1 unit
7 Drawings and technical documents 1 unit

Product features

I. The Power end adapts the 3-turn & 2-support crankshaft and connection rods structure. It features with simple structure, higher strength and rigidity, lighter weight,longer service life,convinient maintenance and stable operation.

II. The fluid part is made of stainless steel for anti-corrosion and easy disassembly for changing the sonsumales.There is an inflatable energy storage service at the discharge end to cut down the rotation of the pipeline.The consumables and other key parts in the hydraulic end adapt advance process technology on material and process to prolong their lives and improve their stability.

III. The whole device adopts skid mounted base for easy lifting and installation.

Packing & Delivery

1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. Any questions or problems while operating the product, please feel free to contact us. Problems would be solved for you immediately.

Competitive Advantages

1. Over sixty experience on pump R&D,production.

2. Adapt aerospace fluid high tech on the hydraulic end and power end,

3. A-grade supplier of CNPC over ten years.

4. High quality products at competitive price in quick delivery.
5. Professional and sincere after-sale service for overseas markets.
6. Exported to USA,Canada,Iran, Zambia,Indonesia and many other countries.
