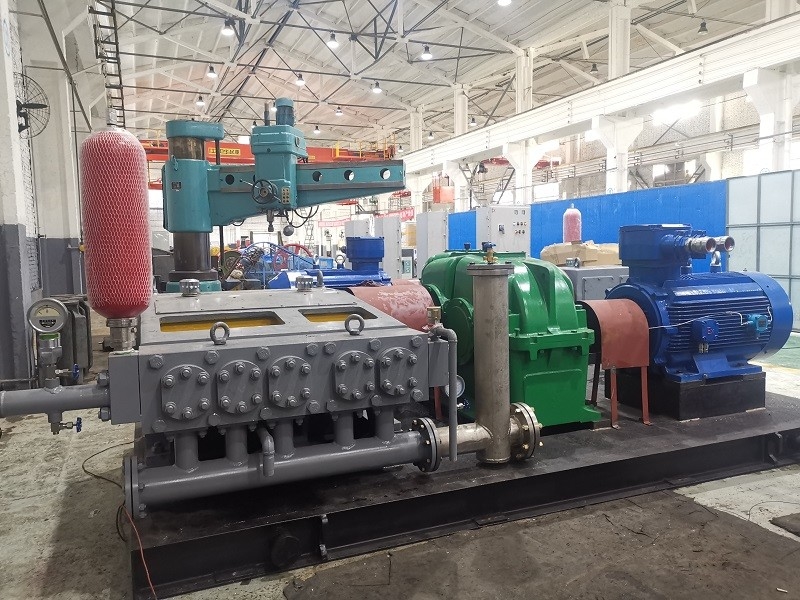

5ZB400 Five-Cylinder Water Injection Pump With 400KW Electric Motor Driven

5ZB400 Five-Cylinder Water Injection Pump With 400KW Electric Motor Driven
5ZB400 Five-Cylinder Water Injection Pump With 400KW Electric Motor Driven 5ZB400 Five-Cylinder Water Injection Pump With 400KW Electric Motor Driven 5ZB400 Five-Cylinder Water Injection Pump With 400KW Electric Motor Driven

Large Image :  5ZB400 Five-Cylinder Water Injection Pump With 400KW Electric Motor Driven

Product Details:
Place of Origin: China
Brand Name: BJB
Certification: ISO9001
Model Number: 5ZB400
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Sea-worthy package or air-worthy package
Delivery Time: 30 work days
Supply Ability: 300 units per year
Detailed Product Description
Type: Plunger Pump,horizontal,filve Cylinders Plunger DN: 40-110mm
Application: Clean Water Or Produced Water Injection In A Single Well Flow Rate: 15-131m3/h
Pressure: 0-50Mpa Material: Cast Iron Or Steel /304/316/2205
Stroke: 180mm Power Rate: 250-400kw
High Light:

well water booster pump

,

industrial water booster pump

,

131m3/h water injection pump

400KW Electric Motor Driven Injection Pump with Flow rate 131m³/h@50Mpa

Description

The pump combination adopts spring self-seal structure with reliable seal and less leak to maintain the plungers a longer life as well as the less friction and wearing to cut down power consumption.The pump is on a complete base or skid with a smaller volume, lighter body for hoisting and other types of installation.



Application

It is special for  circulating system of work over, wash well, cement well and drilling operations during oil field well operation.

Specification

Models 5ZB400
Plunger DN 40~110mm
Stroke 180mm
Discharge flow rate 15~131m3/h
Discharge pressure 6.3~50MPa
Pump speed 230~290rpm
Pump power 250~400kW

Supply Range

Item Product name Quantity Remark
1 pump 1 piece
2 Motor 1 piece Selected based on the user’s need
3 Base plate 1 piece
4 Spare parts, accessories and special tools 1 unit
5 Drawings and technical documents 1 unit

Product Features

The pump's driving end adopts the traditional connecting rod, while the pump's hydraulic end adopts the integral pump head structure with horizontal straight-through valve. It ensure the characteristics of simple structure easy operation and maintenanc. high pump efficiency, and long service lite for the pump head at hydraulic end and the consumable parts. In addition, full automatic temperature controller is put up at the driving end, which ensures more the safety and reliability of the water injecting pump.

Packing & Delivery

1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service. Any questions or problems while operating the product, please feel free to contact us. Problems would be solved for you immediately.



Competitive Advantages

1. Over sixty experience on pump R&D,production.

2. Adapt aerospace fluid high tech on the hydraulic end and power end.

3. A-grade supplier of CNPC over ten years.



4. High quality products at competitive price in quick delivery.


5. Professional and sincere after-sale service for overseas markets.


6. Exported to USA,Canada,Iran, Zambia,Indonesia and many other countries.
