| Product Name: | Moviable Vehicle Pump | Flow Rate: | 13-80m³/h |
|---|---|---|---|
| Discharge Pressure: | 10-40Mpa | Style: | Triplex Reciprocating Type |
| Standard: | ISO | Usage: | For Oilfield Workover Treatment |
| High Light: | Triplex Reciprocating Plunger Pump,Vehicle Mounted Reciprocating Plunger Pump,300KW Reciprocating Plunger Pump |
||

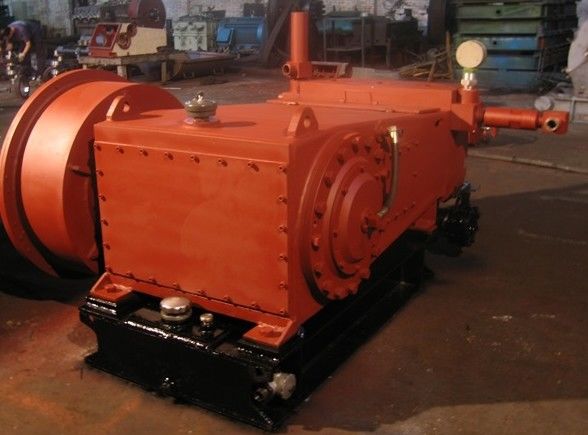

It adapts three-cylinder single action reciprocating style. The pump has complete structure, small volume and light weight and can be loaded on board. It can be used in fracturing and workover treatment on the oil fields. It is made up of two parts: power end and hydraulic end. The Plunger’s diameter can be chosen to meet user’s different needs on pressure and displacement. The power ends of all the plungers are the same.
Structural Type: Triplex or five cylinders horizontal plunger pump
Discharge flow : 13~80 m3/h
Maximum discharge pressure : 25MPa or 2900 PSI
Transmission Medium: Water, cementing fluid, fracturing fluid
Medium Temperature:≤80℃
Mainly used for oilfield well flushing or cementing, fracturing, paraffin, age, pressure test, pipe block and so on.
| Model | HTB300 |
| Stroke | 135mm |
| Discharge flow rate | 13-80m3/h |
| Discharge pressure | 10-40MPa |
| Pump power | Max.300KW |
| Item | Product name | Quantity | Remark |
| 1 | Pump | 1 piece | |
| 2 | Motor | 1 piece | Selected based on the user’s need |
| 4 | attachment | 1 unit | |
| 5 | vulnerable part | 1 unit | |
| 6 | Spare parts, accessories and special tools | 1 unit | |
| 7 | Drawings and technical documents | 1 unit |
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. Any questions or problems while operating the product, please feel free to contact us. Problems will be solved for you immediately.
1. Over sixty experience on pump R&D,production.
2. Adapt aerospace fluid high tech on the hydraulic end and power end,
3. A-grade supplier of CNPC over ten years.
4. High quality products at competitive price in quick delivery.
5. Professional and sincere after-sale service for overseas markets.
6. Exported to USA,Canada,Iran, Zambia,Indonesia and many other countries.
