Professional Reciprocating Plunger Pump For Mine And Metallurgical Industry

China Baoji Aerospace Power Pump Co., Ltd. certification
China Baoji Aerospace Power Pump Co., Ltd. certification
I'm Online Chat Now

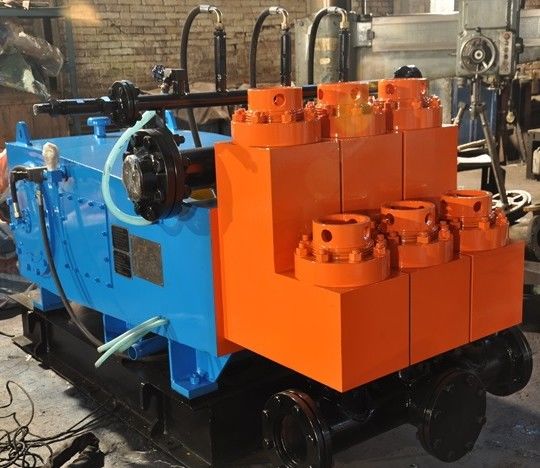

Professional Reciprocating Plunger Pump For Mine And Metallurgical Industry

Professional Reciprocating Plunger Pump For Mine And Metallurgical Industry
Professional Reciprocating Plunger Pump For Mine And Metallurgical Industry

Large Image :  Professional Reciprocating Plunger Pump For Mine And Metallurgical Industry

Product Details:
Place of Origin: China
Brand Name: BJB
Certification: ISO
Model Number: PZNB100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Exported wooden box
Delivery Time: 35 work days
Payment Terms: T/T, L/C
Supply Ability: 500 sets per year
Detailed Product Description
Product Name: Water Injection Pump Theory: Reciprocating Plunger Pump
Standard: ISO Flow: 10-35m³/h
Pressure: 0-8Mpa Usage: Mine And Metallurgical Industry
High Light:

triplex plunger pump

,

lye pump

,

metallurgical industry reciprocating plunger pump

Triplex Plunger Type Water Injection Slurry Pump with Flow 10-35m³/h Pressure 0-8Mpa for Mine and Metallurgical Industry

Description

Combined plunger seal structure.

Wear-corrosion resistant combination valve structure.

Independent high pressure water cleaning, balancing and cooling system.



PZNB Pump is a new designed mud pump. It obtains simple structure, reliable operation, convenient maintenance, long service life, fuel saving and power saving features.It is an ideal equipment for transporting high concentration ash (ore) slurry at long distance in inner thermal power plant and mine.Important equipment for mud, pulp, coal pulp and other pulp. The successful development of this pump fills the plunger pump used in China.The product technology level occupies the domestic same industry leading position, achieves the international advanced level.

Product features

The price of the pump is reasonable, to ensure quality, to ensure timely provision of vulnerable parts to users, users in the installation of the system, the company is responsible for sending technical personnel and technicians to assist the installation and debugging.



Water jet plunger mud pump structure characteristics

The pump mainly consists of valve box, Transmission system, Pump base, Flushing system, Water spraying device and Electric motor.

The pump inlet and outlet valve box are the whole l-type with the suction valve and discharge valve. The three sets of valve boxes are independent.

The flushing system inject high pressure water into the seal in the packing box via the adjustable valve. via adopts high pressure water jet system flushing water through the regulator to the packing in the plunger seal structure into high pressure water lubrication, the plunger surface to form a high pressure water ring, ensure no slurry into the sealing parts, so as to guarantee the normal work of the plunger to extend the life of the piston and seals.

Application



Mainly used for conveying the particulate abrasive medium material such as pulp, mortar, slurry, coal slurry and so on in mining, thermal power plants, metallurgy, transportation and construction, as well as in tailingbackfilling, downhole.

Specification

Models 3NB100,3NB200,3NB400,3NB600
Plunger DN 110~240mm
Stroke 160~300mm
Discharge flow rate 20~350m3/h
Discharge pressure 0~12MPa
Pump speed ≤90min-1
Pump power 30~710KW

Supply range in complete set

Item Product name Quantity Remark
1 Pump 1 piece
2 Motor 1 piece Selected based on the user’s need
4 Attachment 1 unit
5 consumables 1 unit
6 Spare parts, accessories and special tools 1 unit
7 Drawings and technical documents 1 unit
