Product Details:
Payment & Shipping Terms:
|
Frame/Height Centre: | 355~1000 | Power Range(Kw: | 220~5600 |
---|---|---|---|
Voltage (V): | 3000-10000/ User Specified | Poles: | 4~16 |
Name: | Three Phase Motor | Type: | Wound Type |
High Light: | 3 phase asynchronous motor,three phase induction motors |

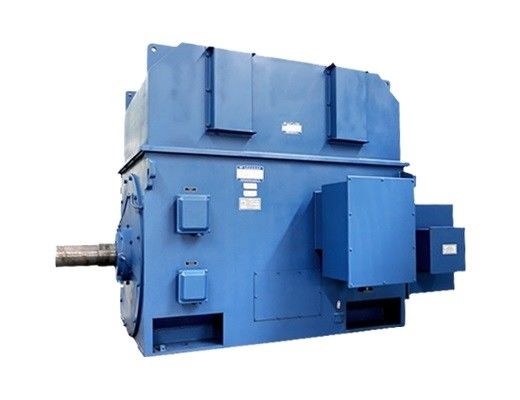

YRKS series wound-type three-phase asynchronous motor
Overview
frame number: 355 ~ 1000mm; power range: 220~5600kW; number of poles: 4-16P; voltage: 3000V, 6000V, 10000V (or user-specified); protection class: IP54, IP55; insulation grade: F; cooling mode: IC81W,IC86W. The motor can be used to drive various general machinery and is suitable for such industries as mining, machinery, metallurgy, petroleum, chemical, power station etc.
Parameters
Type | Motor | Frame/Height Centre | Power Range(Kw) |
Voltage (V) |
Poles | Characteistics/Applications |
YRKS | Wound-Rotor three phase asynchronous motor | 355~1000 | 220~5600 | 3000 6000 10000 User specified | 4~16 | General purpose motors wildlyused in Petroleum,Chemical, Pharmaceutical,Mining and other industries |
Q1.Do you have the UL-LISTED Fire Pump Sets?
Yes, We have the UL/FM and NFPA standard Fire Pump Sets.
Q2.Please quote the XXGPM@XXXPSI Pump without driver.
Sorry, pump are not sold separately, pumps and drives are sold together.
Q3.I need your motor drive End-suction/Split-casing fire pump, what information shold I sent to you ?
Sir/Madam,you can privide the Capacity, Heed, Voltage and Frequncy,we will make the quotation for you,If you need Jockey Pump or other accessories, please tell us together.
Q4.If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information shold I sent to you ?
You can sent the Capacity Heed, Temperature and Altitude (temperature and altitude will affect the performance of diesel engines).If you need Jockey Pump or other accessories, please tell us Voltage and Frequncy or accessories together.
