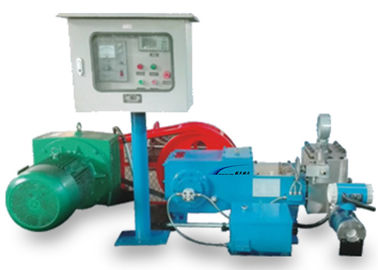

3XB22 Electric Motor Driven Cement Grout Pump , Triplex Horizontal Single Acting Plunger Pump

China Baoji Aerospace Power Pump Co., Ltd. certification
China Baoji Aerospace Power Pump Co., Ltd. certification
I'm Online Chat Now

3XB22 Electric Motor Driven Cement Grout Pump , Triplex Horizontal Single Acting Plunger Pump

3XB22 Electric Motor Driven  Cement Grout Pump , Triplex Horizontal Single Acting Plunger Pump
3XB22 Electric Motor Driven  Cement Grout Pump , Triplex Horizontal Single Acting Plunger Pump

Large Image :  3XB22 Electric Motor Driven Cement Grout Pump , Triplex Horizontal Single Acting Plunger Pump

Product Details:
Place of Origin: China
Brand Name: BJB
Certification: ISO
Model Number: 3XB22
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Exported wooden box
Delivery Time: 18 months after delivery
Payment Terms: T/T, L/C
Supply Ability: 600 sets per year
Detailed Product Description
Features: Quick Change Of Plunger Combination And Stepped Fliud End Structure: Triplex Plunger Pump
Power: Electric Motor Pump Power Rate: 3-22KW
Flow Rate: 0.5-9 M3/h Pressure: 1-7Mpa
High Light:

electric grout pump

,

plunger type pump

Flow0.5- 9m³/h at pressure1-7Mpa Triplex horizontal single-action Plunger grouting pump

Description

The series is horizontal triplex single action Piston pump with stepped hydraulic end structure.

Application

It is used in the process of drilling,injection, discharge and high-pressure cement jet grouting in geology, mines, under water, geotherm and similar conditions.

Specification

Model 3XB22
Plunger DN  20-50mm
Stroke 90mm
Discharge flow rate 0.5-9m3/h
Discharge pressure 1-7MPa
Pump speed 300min-1
Pump power 3-22KW



Supply range

Item Product name Quantity Remark
1 Pump 1 piece
2 Motor 1 piece Selected based on the user’s need
4 Attachment 1 unit
5 Consumables 1 unit
6 Spare parts, accessories and special tools 1 unit
7 Drawings and technical documents 1 unit

Product features

1. quick change structure of plungers combination.
2. stepped hydraulic end.

Packing & Delivery

1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:Any questions or problems while operating the product, please feel free to contact us. Problems would be solved for you immediately.


Competitive Advantages

1. Over sixty experience on pump R&D,production.
2. Adapt aerospace fluid high tech on the hydraulic end and power end,
3. A-grade supplier of CNPC over ten years.
4. High quality products at competitive price in quick delivery.
5. Professional and sincere after-sale service for overseas markets.
6. Exported to USA,Canada,Iran, Zambia,Indonesia and many other countries.
