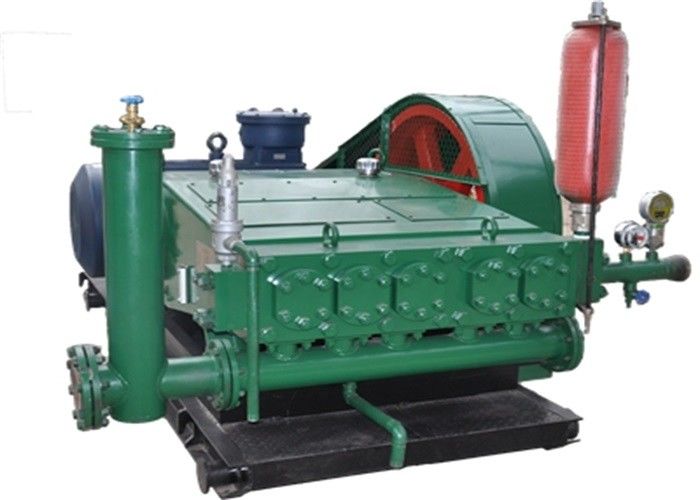

220KW, 10-100m³/H@50 Mpa Plunger Pump For Well Drilling Operation

220KW, 10-100m³/H@50 Mpa Plunger Pump For Well Drilling Operation
220KW, 10-100m³/H@50 Mpa Plunger Pump For Well Drilling Operation

Large Image :  220KW, 10-100m³/H@50 Mpa Plunger Pump For Well Drilling Operation

Product Details:
Place of Origin: China
Brand Name: BJB
Certification: ISO
Model Number: 5ZB220
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Exported Wooden Cabinet
Delivery Time: 35 Work days
Payment Terms: T/T, L/C
Supply Ability: 600 sets per year
Detailed Product Description
Flow Rate: 10-100m3/h Type: Quintplex/Five Cylinder Horizontal Water Injection Pump
Engine Type: Electric Motor/diesel Engine Application: High Pressure Injecting Water Or Boosting For Oil Fields
Packing: Exported Wooden Box Condition: 100% New
Theory: Plunger Pump In Reciprocating Material: 2Cr13,304,316l
High Light:

high pressure booster pump


industrial water booster pump


five cylinder horizontal plunger pump

10-83m³/h,6.3-50Mpa five-cylinder Horizontal Displacement Capacity Plunger Pump


The pump combination adopts spring self-seal structure with reliable seal and less leak to maintain the plungers a longer life as well as the less friction and wearing to cut down power consumption.

Based on the Aerospace seal technology, we developed the YM5030-20-J, YM5030-40-J packing with the features of anti-corrosion and stable seal, which has got excellent effort on the produced water of the oil fields. It has perfect chemical stabilization and heat resistance and can be safely used at the temperature range of -15~120℃. There is four fluorine spacer ring between packing to guarantee the packing be compacted evenly and get lubricated with a longer serving life.

There are enough springs set between the plunger composition to press the packing to ensure its work at suitable pressure for a better seal and longer life.

Hydraulic end adopts horizontal or vertical structure and take different materials 20Cr13/1Cr18Ni9Ti/304/316L according to different medium.




It is special for large flow rate injection water in a single well,mainly used for circulating system of work over, wash well, cement well and drilling operations.




Model 5ZB220
Plunger DN 45-70mm
Stroke 180mm
Flow rate range 20-180m3/h
Discharge pressure range 6.3-50MPa
Pump speed 150-300min-1
Pump power 280-560kW


Tech strengths--PATENTS

China ZL201220278054.0 Large flow rate injection pump for oil fields
China ZL20133 0451871.1 5ZB600 injection pump
China ZL200820029999.2 Valve seat structure of high pressure injection pump for oil fields
China ZL201320178756.6 Sectional spherical valve
China ZL201620995238.7 Smart remote control system


Supply Range

Item Product name Quantity Remark
1 pump 1 piece
2 Motor 1 piece Selected based on the user’s need
3 Base plate 1 piece
4 Spare parts, accessories and special tools 1 unit
5 Drawings and technical documents 1 unit


Product Fearues


The series are new injection pumps for replacing the multistage centrifugal pumps in the oil field.It is highly automatic ,large flow, higher discharge pressure, better efficiency and long life as well as meet the oil field requirement accurate injection and green energy saving. Compared with the multistage centrifugal pump, it improves the pump efficiency better and helps solve energy utilization, and cuts down the oil recovery cost as a mechanical and electrical integration. It will become indispensable to a new generation of oilfield drilling equipment updating and upgrading of products.

Packing and Delivery

1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems while operating the product, please feel free to contact us. Problems would be solved for you immediately.

Competitive Advantages

1. Over sixty experience on pump R&D,production.

2. Adapt aerospace fluid high tech on the hydraulic end and power end.

3. A-grade supplier of CNPC over ten years.

4. High quality products at competitive price in quick delivery.

5. Professional and sincere after-sale service for overseas markets.

6. Exported to USA,Canada,Iran, Zambia,Indonesia and many other countries.
