Product Details:
Payment & Shipping Terms:
|
| Type: | Horizontal Quintuplex Plunger Pump | Application: | Excellent For High Pressure Large Flow Rate Water Injection |
|---|---|---|---|
| Material: | Casr Iron,steel,stainless Steel/304/316L | Fluid End's Type: | Horizontal Or Vertical |
| Flow Rate: | 30-216m3/h | Pressure: | 0-50Mpa |
| Plunge DN: | 50-110mm | Stroke: | 200mm |
| Power Rate: | 450-900kw | Pump Speed: | 230-290rpm |
| High Light: | high pressure booster pump,industrial water booster pump,water injection pump 50 Mpa |
||

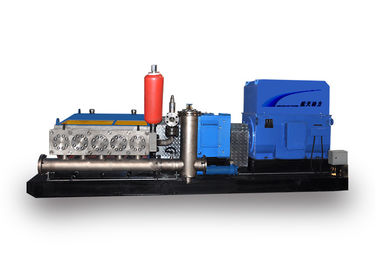

5ZB series are horizontal and quintuplex reciprocating plunger pumps with stable power end, fluid end and lubrication system. The pump adapts the reasonable structure, smooth running, lower noise, higher efficiency, and obtain higher discharge power rate, reliable operation and convenient maintenance. The pump is on a complete base or skid with a smaller volume, lighter body for hoisting and other types of installation.
Its hydraulic end adopts horizontal or vertical structure and take different materials 20Cr13/1Cr18Ni9Ti/304/316L according to different medium.
Application
It is special for large flow rate injection water in a single well,mainly used for circulating system of work over, wash well, cement well and drilling operations.
| Max. flow rate | 30-216 m3/h | Max. discharge pressure | 0-50 MPa |
| Max. power rate | 450-900 kW | Stroke | 200 mm |
Tech strengths--Patents
| COUNTRY | APPLICATION OR PATENT NUM. | PATENT NAME |
| China | ZL201220278054.0 | Large flow rate injection pump for oil fields |
| China | ZL20133 0451871.1 | 5ZB600 injection pump |
| China | ZL200820029999.2 | Valve seat structure of high pressure injection pump for oil fields |
| China | ZL201320178756.6 | Sectional spherical valve |
| China | ZL201620995238.7 | Smart remote control system |
| Item | Product name | Quantity | Remark |
| 1 | pump | 1 piece | |
| 2 | Motor | 1 piece | Selected based on the user’s need |
| 3 | Base plate | 1 piece | |
| 4 | Spare parts, accessories and special tools | 1 unit | |
| 5 | Drawings and technical documents | 1 unit |
Product Fearues
The series are new injection pumps for replacing the multistage centrifugal pumps in the oil field.It is highly automatic ,large flow, higher discharge pressure, better efficiency and long life as well as meet the oil field requirement accurate injection and green energy saving. Compared with the multistage centrifugal pump, it improves the pump efficiency better and helps solve energy utilization, and cuts down the oil recovery cost as a mechanical and electrical integration. It will become indispensable to a new generation of oilfield drilling equipment updating and upgrading of products.
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems while operating the product, please feel free to contact us. Problems would be solved for you immediately.
1. Over sixty experience on pump R&D,production.
