3ZB55 Electric Reciprocating Pump Low Noise For High Pressure / Booster Injection Water,2-27m3/h @6.3-50Mpa

3ZB55 Electric Reciprocating Pump Low Noise For High Pressure / Booster Injection Water,2-27m3/h @6.3-50Mpa
3ZB55 Electric Reciprocating Pump Low Noise For High Pressure / Booster Injection Water,2-27m3/h @6.3-50Mpa

Large Image :  3ZB55 Electric Reciprocating Pump Low Noise For High Pressure / Booster Injection Water,2-27m3/h @6.3-50Mpa

Product Details:
Place of Origin: China
Brand Name: BJB
Certification: ISO
Model Number: 3ZB55
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negiabale
Packaging Details: Exported package
Delivery Time: 4 weeks
Payment Terms: L/C, T/T
Supply Ability: 500 sets per year
Detailed Product Description
Type: Horizontal,Triplex,Plunger Pump Application: Water Injection For Oil Fields
Color: As Clients Require Theory: Reciprocating
Flow Rate: 2-27m3/h Pressure: 6.3-50Mpa
Plunger DN: 29-90mm Stroke: 90mm
Pump Speed: 180-230rpm Power Rate: 35-55Kw
High Light:

well water booster pump

,

high pressure booster pump

Flow Rate 2-27 m³/h,Max. Discharge Pressure 50Mpa Water Injection Pump for Clean water or Produced Water

Description



It has stable power end, fluid end and lubrication system with a reasonable structure, smooth running, lower noise, higher efficiency, and obtain higher discharge power rate, reliable operation and convenient maintenance.The pump is on a complete base or skid with a smaller volume, lighter body for hoisting and other types of installation.



Application

It is special for high pressure or booster injection water in a single well,mainly used for circulating system of work over, wash well, cement well and drilling operations.

Specification

Model 3ZB55
Plunger DN 29-90mm
Stroke 90mm
Flow rate range 2.0-27m3/h (8.8-118.9GPM)
Discharge pressure range 0-50MPa (0-7252psi)
Seal type Mechanic seal
Pump power 40.2-73.8HP(30--55KW)



Supply range



Item Product name Quantity Remark
1 pump 1 piece
2 Motor 1 piece Selected based on the user’s need
3 Base plate 1 piece
4 Spare parts, accessories and special tools 1 unit
5 Drawings and technical documents 1 unit

Product Features

The pump's driving end adopts the traditional connecting rod, while the pump's hydraulic end adopts the integral pump head structure with horizontal straight-through valve. It ensure the characteristics of simple structure easy operation and maintenanc. high pump efficiency, and long service lite for the pump head at hydraulic end and the consumable parts. In addition, full automatic temperature controller is put up at the driving end, which ensures more the safety and reliability of the water injecting pump.

Sample Show

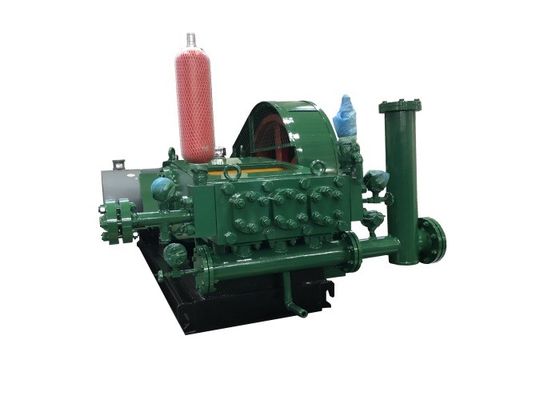

3ZB55 Electric Reciprocating Pump Low Noise For High Pressure / Booster Injection Water,2-27m3/h @6.3-50Mpa 0

Packing & Delivery

1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems while operating the product, please feel free to contact us. Problems would be solved for you immediately.



Competitive Advantages

1. over sixty experience on pump R&D,production.

2. Adapt aerospace fluid high tech on the hydraulic end and power end,

3. A-grade supplier of CNPC over ten years.

4. High quality products at competitive price in quick delivery.
5. Professional and sincere after-sale service for overseas markets.
6. Exported to USA,Canada,Iran, Zambia,Indonesia and many other countries.
