Product Details:
Payment & Shipping Terms:
|
| Type: | Five Cylinder Plunger Horizontal Pump | Engine Type: | Electric Motor, Diesel Engine |
|---|---|---|---|
| Quality: | New & High Performance | Packing: | Exported Iron Box |
| Color: | Green, White Or Red | Theory: | Displacement Capacity Pump |
| Flow Rate: | 6.5-76m3/h | Pressure: | 6.3-50Mpa |
| Stroke: | 120mm | Power Rate: | 110-160kw |
| High Light: | well water booster pump,industrial water booster pump |
||

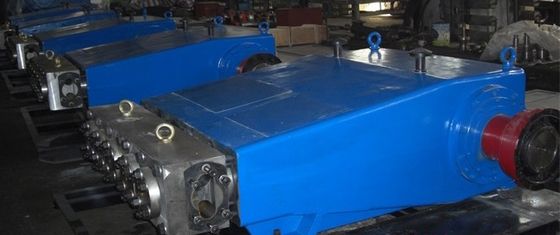

5ZB series are horizontal triplex and quintuplex reciprocating plunger pumps with stable power end, fluid end and lubrication system. The pump adapts the reasonable structure, smooth running, lower noise, higher efficiency, and obtain higher discharge power rate, reliable operation and convenient maintenance.The pump is on a complete base or skid with a smaller volume, lighter body for hoisting and other types of installation.
It is special for high pressure or booster injection water in a single well,mainly used for circulating system of work over, wash well, cement well and drilling operations.
| Model | 5ZB160 |
| Plunger DN | 32～90mm |
| Stroke | 120mm |
| Discharge flow rate | 6.5~76m3/h |
| Discharge pressure | 6.3~50MPa |
| Pump speed | 230-290rpm |
| Pump power | 110～160kw |
Supply range
| Item | Product name | Quantity | Remark |
| 1 | pump | 1 piece | |
| 2 | Motor | 1 piece | Selected based on the user’s need |
| 3 | Base plate | 1 piece | |
| 4 | Spare parts, accessories and special tools | 1 unit | |
| 5 | Drawings and technical documents | 1 unit |
The pump＇s driving end adopts the traditional connecting rod, while the pump＇s hydraulic end adopts the integral pump head structure with horizontal straight-through valve. It ensure the characteristics of simple structure easy operation and maintenanc. high pump efficiency, and long service lite for the pump head at hydraulic end and the consumable parts. In addition, full automatic temperature controller is put up at the driving end, which ensures more the safety and reliability of the water injecting pump.
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service. Any questions or problems while operating the product, please feel free to contact us. Problems would be solved for you immediately.
3. A-grade supplier of CNPC over ten years.
4. High quality products at competitive price in quick delivery.
5. Professional and sincere after-sale service for overseas markets.
6. Exported to USA,Canada,Iran, Zambia,Indonesia and many other countries.
