Home ProductsFrac Pump

600HP Frac Pump With Flow Rate 13 - 90m³/h, Discharge Pressure10 - 70Mpa

China Baoji Aerospace Power Pump Co., Ltd. certification
China Baoji Aerospace Power Pump Co., Ltd. certification
I'm Online Chat Now

600HP Frac Pump With Flow Rate 13 - 90m³/h, Discharge Pressure10 - 70Mpa

600HP  Frac Pump With Flow Rate 13 - 90m³/h, Discharge Pressure10 - 70Mpa
600HP  Frac Pump With Flow Rate 13 - 90m³/h, Discharge Pressure10 - 70Mpa

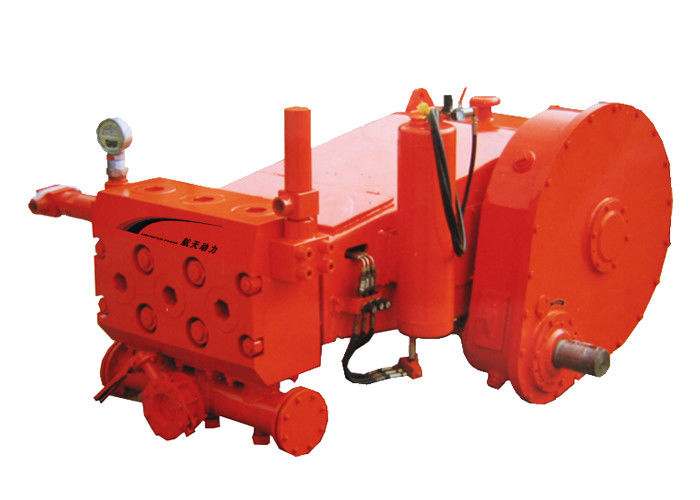

Large Image :  600HP Frac Pump With Flow Rate 13 - 90m³/h, Discharge Pressure10 - 70Mpa

Product Details:
Place of Origin: China
Brand Name: BJB
Certification: ISO
Model Number: HTB600S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Exported iron box
Delivery Time: 45 work days
Payment Terms: T/T, L/C
Supply Ability: 300 sets per year
Detailed Product Description
Product Name: Frac Pump Model: HTB600S
Discharge Flow Rate: 13 - 90m³/h Discharge Pressure: 10 - 70Mpa
Pump Speed: ≤320min-1 Pump Power: 440KW
High Light:

electric frac pump

,

triplex frac pump

Triplex Fracturing Pump with Flow Rate 13-90m³/h,Discharge Pressure 10-70Mpa driven by 600HP Motor

Performance



Structural Type: Triplex or five cylinders horizontal plunger pump

Discharge flow : 13~80 m3/h or 2.6~660.5GPM,Maximum discharge pressure : 25MPa or 2900 PSI

Transmission Medium: Water, cementing fluid, fracturing fluid

Medium Temperature:≤80℃

Application

Mainly used for oilfield fracturing,well flushing or cementing, paraffin, pipe blockage and pressure test.

Specification

Models HTB600S
Plunger DN 115mm
Stroke 160mm
Discharge flow rate 13~90m3/h
Discharge pressure 10~70MPa
Pump speed ≤320min-1
Pump power 440KW

Supply range

Item Product name Quantity Remark
1 Pump 1 piece
2 Motor 1 piece Selected based on the user’s need
4 attachment 1 unit
5 vulnerable part 1 unit
6 Spare parts, accessories and special tools 1 unit
7 Drawings and technical documents 1 unit

Packing & Delivery

1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. Any questions or problems while operating the product, please feel free to contact us. Problems will be solved for you immediately.

Competitive Advantages

1. Over sixty experience on pump R&D,production.

2. Adapt aerospace fluid high tech on the hydraulic end and power end,

3. A-grade supplier of CNPC over ten years.

4. High quality products at competitive price in quick delivery.
5. Professional and sincere after-sale service for overseas markets.
6. Exported to USA,Canada,Iran, Zambia,Indonesia and many other countries.
