Product Details:
Payment & Shipping Terms:
|
| Product Name: | Water Injection Pump | Flow Rate Range: | 103-350 M3/h |
|---|---|---|---|
| Discharge Pressure Rang: | 10-31.5 MPa | Power Rate Range: | 900-1600 Kw |
| Stroke: | 250mm | Structure: | Five Cylinder |
| High Light: | high pressure booster pump,industrial water booster pump,350m3/h five cylinder water injection pump |
||

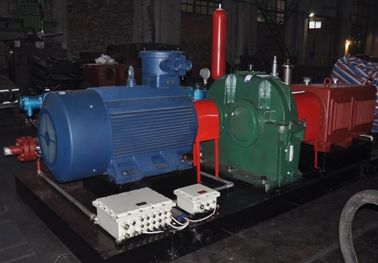

Five cylinder Water Injection Pump are special for for high pressure or booster injection water in a single well,which adapt reasonable structure,smooth running,lower noise,higher efficiency and obtain higher discharge power rate, reliable operation and convinient maintainence.It is on a complete base with smaller vocume,lighter body for hoisting and other types of installation.
Application
It is special for large flow rate injection water in a single well,mainly used for circulating system of work over, wash well, cement well and drilling operations.
| Flow rate range | 103-350 m3/h | Discharge pressure rang | 10-31.5 MPa |
| Power rate range | 900-1600 Kw | Stroke | 250 mm |
Tech strengths--Patents
| COUNTRY | APPLICATION OR PATENT NUM. | PATENT NAME |
| China | ZL201220278054.0 | Large flow rate injection pump for oil fields |
| China | ZL20133 0451871.1 | 5ZB600 injection pump |
| China | ZL200820029999.2 | Valve seat structure of high pressure injection pump for oil fields |
| China | ZL201320178756.6 | Sectional spherical valve |
| China | ZL201620995238.7 | Smart remote control system |
| Item | Product name | Quantity | Remark |
| 1 | pump | 1 piece | |
| 2 | Motor | 1 piece | Selected based on the user’s need |
| 3 | Base plate | 1 piece | |
| 4 | Spare parts, accessories and special tools | 1 unit | |
| 5 | Drawings and technical documents | 1 unit |
Product Fearues
The series are new injection pumps for replacing the multistage centrifugal pumps in the oil field.It is highly automatic ,large flow, higher discharge pressure, better efficiency and long life as well as meet the oil field requirement accurate injection and green energy saving. Compared with the multistage centrifugal pump, it improves the pump efficiency better and helps solve energy utilization, and cuts down the oil recovery cost as a mechanical and electrical integration. It will become indispensable to a new generation of oilfield drilling equipment updating and upgrading of products.
1. Prompt delivery at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems while operating the product, please feel free to contact us. Problems would be solved for you immediately.
1. Over sixty experience on pump R&D,production.
