|Seal:||Machanic Seal||Motor:||Electric Motor Or Diesel Engine|
|Usage:||High Pressure Flushing||Flow Rate:||200-350m³/h|
|Pressure:||Max. 12Mpa||Application:||Mainly Used For Removing The Coke In Boilers, Chemical Containers, Pipes Or Tube Bundles, And Removing Fat, Scale, Rust Of The Mechanical Components|
|Structure:||Triplex Horizontal Reciprocating Pump||Power:||1000HP|
mud slurry pump,
electric reciprocating pump
Combined plunger seal structure.
Wear-corrosion resistant combination valve structure.
Independent high pressure water cleaning, balancing and cooling system.
Flurry Pump is a new designed mud pump. It obtains simple structure, reliable operation, convenient maintenance, long service life, fuel saving and power saving features.It is an ideal equipment for transporting high concentration ash (ore) slurry at long distance in inner thermal power plant and mine.Important equipment for mud, pulp, coal pulp and other pulp. The successful development of this pump fills the plunger pump used in China.The product technology level occupies the domestic same industry leading position, achieves the international advanced level.
Mainly used for conveying the particulate abrasive medium material such as pulp, mortar, slurry, coal slurry and so on in mining, thermal power plants, metallurgy, transportation and construction, as well as in tailingbackfilling, downhole.
|Discharge flow rate||200~350m3/h|
Flushing packing plunger slurry mud pump's structure characteristics

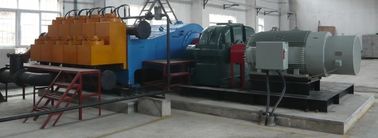

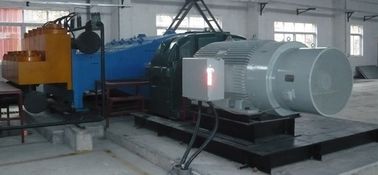

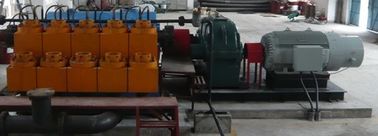

It mainly consists of valve box, Transmission system, Pump base, Flushing system, Water spraying device and Electric motor.
It's inlet and outlet valve box are the whole l-type with the suction valve and discharge valve. The three sets of valve boxes are independent.
The flushing system inject high pressure water into the seal in the packing box via the adjustable valve. via adopts high pressure water jet system flushing water through the regulator to the packing in the plunger seal structure into high pressure water lubrication, the plunger surface to form a high pressure water ring, ensure no slurry into the sealing parts, so as to guarantee the normal work of the plunger to extend the life of the piston and seals.
