Flow 1.0 - 10, Max. pressure 25Mpa, water injection pump, with 18.5KW Electric motor

China Baoji Aerospace Power Pump Co., Ltd. certification
China Baoji Aerospace Power Pump Co., Ltd. certification
I'm Online Chat Now

Flow 1.0 - 10, Max. pressure 25Mpa, water injection pump, with 18.5KW Electric motor

Flow 1.0 - 10, Max. pressure 25Mpa, water injection pump, with 18.5KW Electric motor
Flow 1.0 - 10, Max. pressure 25Mpa, water injection pump, with 18.5KW Electric motor

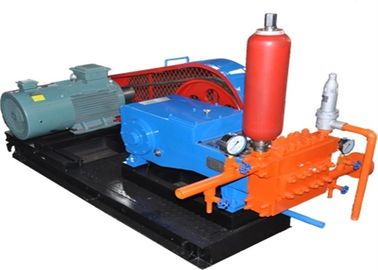

Large Image :  Flow 1.0 - 10, Max. pressure 25Mpa, water injection pump, with 18.5KW Electric motor

Product Details:
Place of Origin: CHINA
Brand Name: BJB
Certification: ISO9001
Model Number: 3ZB18.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Iron box
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 500 sets per year
Detailed Product Description
Structure: Triplex Or Three Cylinder Plunger Pumps Flow Rate: 1.0-10 M3/h
Pressure: 0-25Mpa Fluid: Clean Or Produced Water
Plunger DN: 20-60mm Stroke: 75mm
High Light:

well water booster pump

,

industrial water booster pump

,

25Mpa water injection pump

Flow Rate 1.0-10 m³/h,Max. Discharge Pressure 25Mpa Water Injection Pump for Clean water or Produced Water

Description



It has stable power end, fluid end and lubrication system with a reasonable structure, smooth running, lower noise, higher efficiency, and obtain higher discharge power rate, reliable operation and convenient maintenance.The pump is on a complete base or skid with a smaller volume, lighter body for hoisting and other types of installation.



Model 3ZB18.5
Plunger DN 20-60mm
Stroke 75mm
Flow rate range 1.0-10m3/h (4.4-44GPM)
Discharge pressure range 0-25MPa (0-3626psi)
Seal type Mechanic seal
Pump power 10.1-24.8HP(7.5-18.5KW)

Supply range

Item Product name Quantity Remark
1 pump 1 piece
2 Motor 1 piece Selected based on the user’s need
3 Base plate 1 piece
4 Spare parts, accessories and special tools 1 unit
5 Drawings and technical documents 1 unit



Application

It is special for high pressure or booster injection water in a single well,mainly used for circulating system of work over, wash well, cement well and drilling operations.

Specification


Flow 1.0 - 10, Max. pressure 25Mpa, water injection pump, with 18.5KW Electric motor 0

Product Features

The pump's driving end adopts the traditional connecting rod, while the pump's hydraulic end adopts the integral pump head structure with horizontal straight-through valve. It ensure the characteristics of simple structure easy operation and maintenanc. high pump efficiency, and long service lite for the pump head at hydraulic end and the consumable parts. In addition, full automatic temperature controller is put up at the driving end, which ensures more the safety and reliability of the water injecting pump.

Sample Show

Packing & Delivery

1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems while operating the product, please feel free to contact us. Problems would be solved for you immediately.



Competitive Advantages

1. over sixty experience on pump R&D,production.

2. Adapt aerospace fluid high tech on the hydraulic end and power end,

3. A-grade supplier of CNPC over ten years.

4. High quality products at competitive price in quick delivery.
5. Professional and sincere after-sale service for overseas markets.
6. Exported to USA,Canada,Iran, Zambia,Indonesia and many other countries.
