Product Details:
Payment & Shipping Terms:
|
Rated Pressure: | 24MPa | Rated Flow: | 265L/min |
---|---|---|---|
Operation Temperature: | -20℃~90℃ | Max Number Of Work Blocks: | 6 |
Type: | Hydraulic Equipment | Name: | Multiple Directional Control Valve |
High Light: | hydraulic metering pump,hydraulic gear pump |

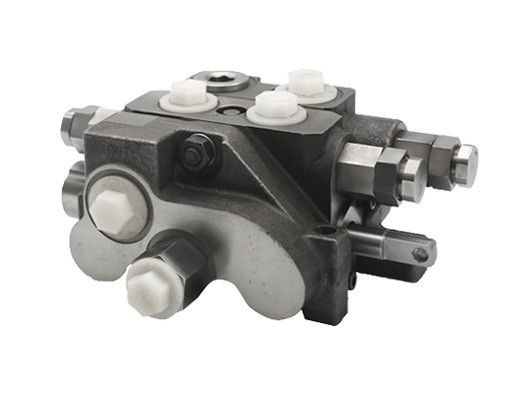

Multiple-directional Control Valve
Model: HLVG35
Features and application:
The HLVG35 multiple-directional control valve is a multi-way reversing valve of manual control. It can be used in hydraulic systems for construction and mining machinery. Optimized flow channel design, low pressure loss; precise structural design and processing, less leakage, with the parameter indicators far exceeding the national standards; stem surface plated with hard chrome rendering high wear resistance and long product service life; safety valve provided at the inlet; overload valve provided at the working port, making the product safe and reliable for use.
Performance parameters
The valve has two parallel inlets for flow confluence; the two working valve blocks control two actuators; the number of working valve blocks can be increased or decreased according to customer needs for controlling the operation of several actuators.
