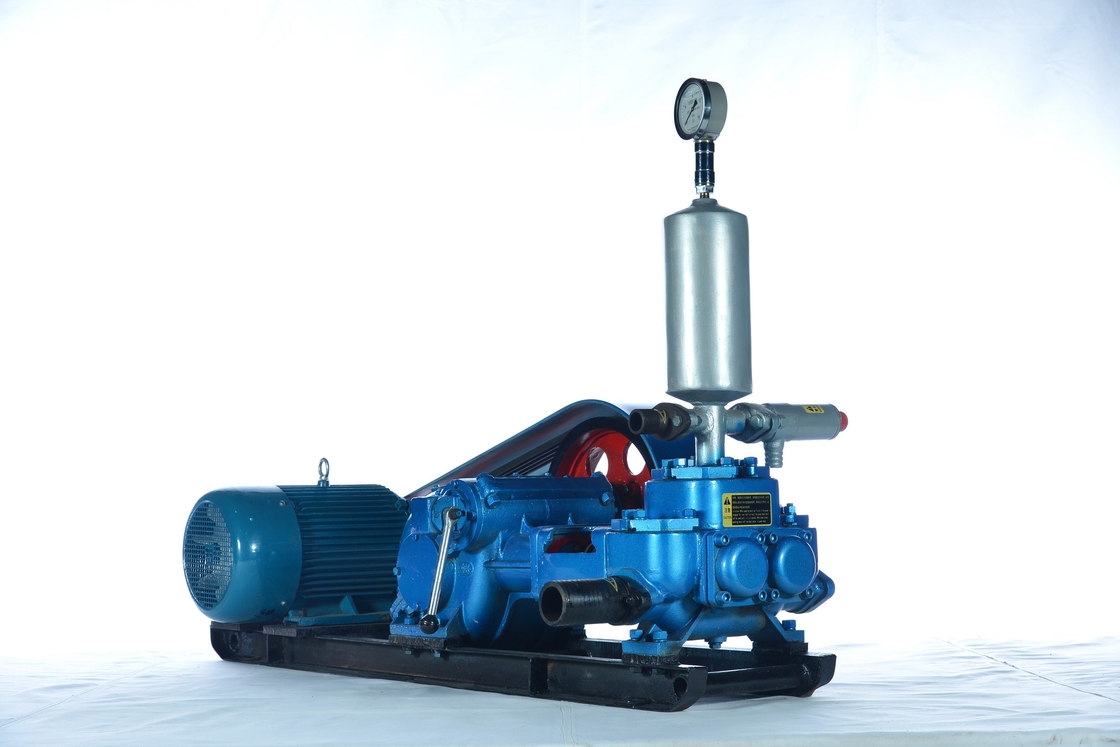

The model slurry pumps were designed and produced based on the former HTB slurry pumps to meet with well drilling needs of shadow, geology and underground water. The pump mainly matches the oil or water drilling rigs below 2000 meters and other drilling equipment with the same parameters. Driven by electric motors or diesel engines.It consists of an input device,a frame,a pump body,an air bag,a suction halter and a skid.
| Type | Horizontal duplex double action piston pump |
| Stroke(mm) | 85 |
| Pump speed(lpm) | 145 |
| Cylinder DN(mm) | 80 |
| Flow(L/min) | 200 |
| Discharge Pressure(MPa) | 4 |
| Power(kw) | 15 |
| Overall Dimension(mm) | 1050*630*820 |
| Weight(kg) | 450 |
Application: Shallow oil field drilling, mining or coal mining.
