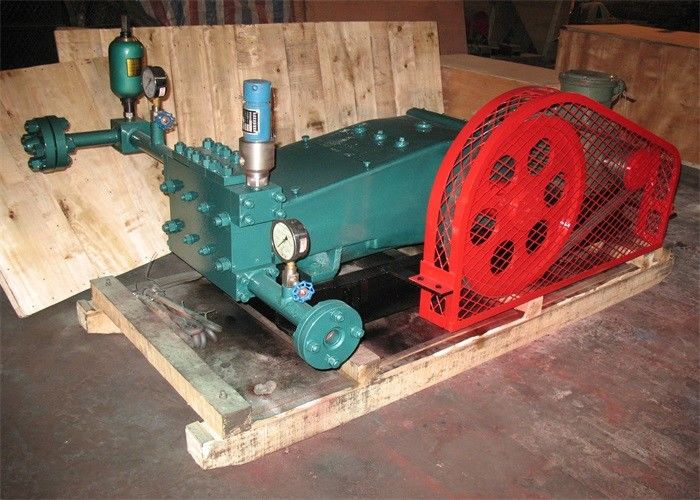

Three Cylinder Diesel Fuel Transfer Pump With Cast Iron / Stainless Steel Body

China Baoji Aerospace Power Pump Co., Ltd. certification
China Baoji Aerospace Power Pump Co., Ltd. certification
I'm Online Chat Now

Three Cylinder Diesel Fuel Transfer Pump With Cast Iron / Stainless Steel Body

Three Cylinder Diesel Fuel Transfer Pump With Cast Iron / Stainless Steel Body
Three Cylinder Diesel Fuel Transfer Pump With Cast Iron / Stainless Steel Body

Large Image :  Three Cylinder Diesel Fuel Transfer Pump With Cast Iron / Stainless Steel Body

Product Details:
Place of Origin: China
Brand Name: BJB
Certification: ISO
Model Number: 3SY7.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Iron Box
Delivery Time: 30 work days
Payment Terms: T/T, L/C
Supply Ability: 600 sets per year
Detailed Product Description
Type: Three-cylinder Horizontal Plunger Pump Flow Rate: 0.9-3m3/4
Pressure: Max.25Mpa Fuel: Electric Motor Or Diesel Engine
Material: Cast Iron,stainless Steel,316SS Power Rate: 1.5-7.5Kw
Stroke: 65mm Suction Pressure: 0.02-0.1Mpa
High Light:

diesel fuel transfer pump

,

electric fuel transfer pump

,

Cast Iron Diesel Fuel Transfer Pump

Triplex 0.9-3m³/h, Max. Pressure 25Mpa Crude Oil Tranfer Pump

Description

The Power end adapts the 3-turn & 2-support crankshaft and connection rods structure. And due to the multi-cylinder pump, the discharge flow can be reduced and the inertia head can decrease to cut down the pipeline vibration. The power end mainly consists of frame, crankshaft, connection rods, crossheads, crosshead pins, connection rod bushings (Big and small ends) and rolling bearings. It features with simple structure, higher strength and rigidity, lighter weight,longer service life,convinient maintenance and stable operation.

Application

Mainly used for conveying crude oil or mediums similar to crude oil at physics property.Mainly used for transport of crude oil or other related products between different oil stations.

Specification



Model 3SY7.5
Plunger DN 20-45mm
Stroke 65mm
Discharge flow rate 0.9-3m3/h
Discharge pressure   0-25MPa
Pump speed 180-230rpm
Power rate 4-7.5kW

Supply range



Item Product name Quantity Remark
1 Pump 1 piece
2 Motor 1 piece Selected based on the user’s need
4 Attachment 1 unit
5 Consumables 1 unit
6 Spare parts, accessories and special tools 1 unit
7 Drawings and technical documents 1 unit

Product Features

It consists of power end, plunger combination and hydraulic end as a kind of horizontal triplex or quintuplex single active recirculation pump based on the over sixty-year R&D experience and the civil fluid technology of China Academy of Lanch Vehicle Technology.

Packing & Delivery

1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:Any questions or problems while operating the product, please feel free to contact us. Problems would be solved for you immediately.



Competitive Advantages

1. Over sixty experience on pump R&D,production.

2. Adapt aerospace fluid high tech on the hydraulic end and power end,

3. A-grade supplier of CNPC over ten years.

4. High quality products at competitive price in quick delivery.
5. Professional and sincere after-sale service for overseas markets.
6. Exported to USA,Canada,Iran, Zambia,Indonesia and many other countries.
