Product Details:
Payment & Shipping Terms:
|
Flow Rate: | 35-240m³/h | Head: | 60-120m |
---|---|---|---|
Power: | 19.5-110kw | Min Weight: | 45kg |
Model: | ZX-HY | Certification: | ISO9001 |
High Light: | diesel fuel transfer pump,crude oil transfer pump,ISO9001 Oil Feed Pump |
Petrol-feed Pump,oil feed pump ,oil pump

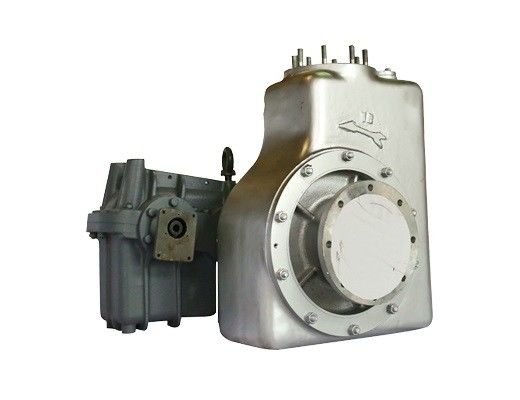

Petrol-feed Pump
Overview
ZX series self-priming centrifugal pump is mainly composed of the gearbox for speed increasing, pump body, impeller, inducer, mechanical seal, etc. ZX series pumps are suitable for conveying gasoline, kerosene, diesel oil and other light oil at -40°C~80°C as well as medium with similar performance. It is specially used for refueling truck and tanker, and can be used as the oil transfer equipment for the airport, oil depot and gas station.
Feature
ZX series pumps are directly connected to the gearbox for speed increasing, and the pump itself has no shaft, nor bearing. The pumps are compact, lightweight and highly reliable. The overflow parts are made of stainless steel or high-strength aluminum alloy in the aerospace industry, which greatly reduce the weight of pumps and ensure clean and safe media. It is easy to maintain the pumps, and it is only necessary to remove the inlet pipe to replace the mechanical seal, impeller and inducer, etc.
System composition
The pump set consists of the gearbox for speed increasing, pump body, impeller, inducer and mechanical seal, etc.
Use
The pump is suitable for conveying gasoline, kerosene, diesel oil and other light oil at -40°C~80°C as well as non-corrosive liquid similar to water. It is specially used for refueling trucks and tankers, and can be used as the oil transfer equipment for airports, oil depots and gas stations. It can also be equipped with a control system to achieve constant pressure output, constant flow output, automatic overspeed protection, emergency shutdown and other functions. It can realize the centralized control remotely and automated operations, and is widely used in the oil system, agriculture, fire control, municipal administration, electric power, mining, chemical industry and other fields.
